Eliminate spills with Innovative Solar's reliable, cost-effective, Intrinsically Safe Separator ESD Controllers with Annunciation. Our extensive experience allows us to understand the specific needs of our clients and recommend the most effective ESD control solutions.
IS-1400
Our intrinsically safe ESD controller allows for indoor installation.

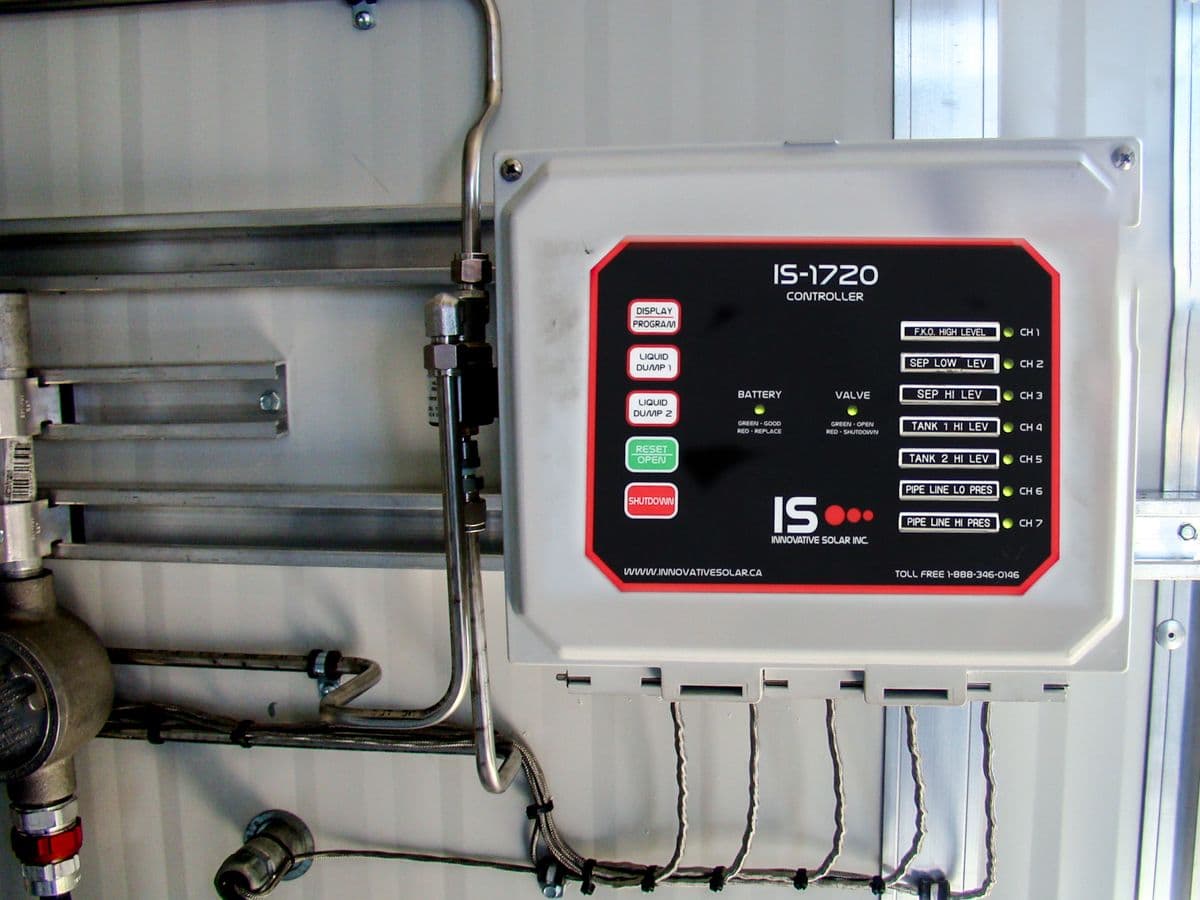

IS-1720
The big brother to the IS-1400
IS-1400

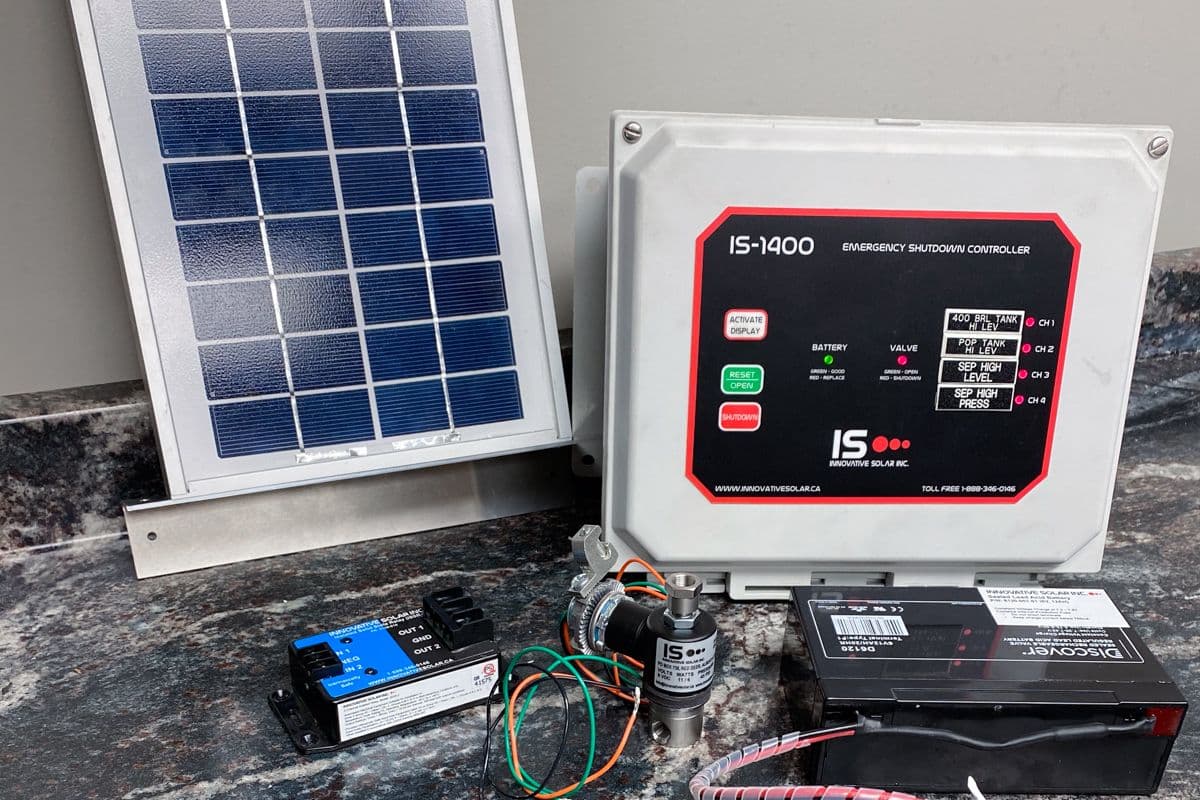

The 4 Channel IS-1400 is shown as a system with 5W Solar Panel, 6V solenoid and intrinsically safe relay/barrier
The IS-ESD System is designed for simplicity and safety in operation. Under normal conditions, all indicators on the controller display green, signifying proper functioning. However, if an alarm is triggered, the system responds swiftly. The I.S. ESD controller sends a signal to open the control solenoid, which bleeds off the instrument gas and closes the inlet/ESD valve. This action is visually indicated by the alarm light and 'valve status' light changing from green to red. To restore normal operation after an alarm has been addressed, operators simply need to press the green 'RESET' button on the controller, which will reopen the inlet/ESD valve.
For additional safety, the inlet/ESD valve can be manually closed by pressing the red 'shutdown' button. The system also has a fail-safe feature that closes the valve if the internal battery voltage drops too low, indicated by the 'battery status' light turning red. The operational principle is straightforward: green signifies all is well, while red indicates an issue requiring attention.
This fail-safe unit is remarkably resilient and guaranteed to operate for up to 6 months without sunlight. The advanced model IS-1720 is equipped with 485 mod bus communication capabilities, allowing it to share critical information such as alarm status, well status, and system voltage. It can even receive remote shutdown commands via a radio SCADA system, enhancing its versatility and integration with broader control systems.
The IS-ESD System comprises several key components:
1. A 5-watt solar panel for sustainable power generation
2. The IS-1720 main controller unit, which is the brain of the system
3. A 6v solenoid that controls gas bleeding and valve operations
4. An ISSR intrinsically safe relay/barrier to ensure operational safety in hazardous environments
With over 20 years in the business, this system offers numerous advantages:
- It effectively eliminates spills and equipment damage, protecting both the environment and valuable assets.
- Boasts an impressive reliability record with less than 1% fail rate.
- Designed for user-friendly operation with no programming required.
- Intrinsically safe, making it suitable for installation in separator buildings.
- Incorporates the newest technology while maintaining quick install times.
- Cost-effective solution backed by a dedicated tech support team.
The IS-ESD System represents a culmination of experience, innovation, and commitment to safety in industrial operations.
